Thermal Printers
Related products
58mm thermal printer (PM-105PT)
|
Model No. |
PM-105PT |
|
|
|
Printing Method |
Thermal |
|
Printing Speed |
30-50mm/s |
|
|
Resolution |
8 dots/mm, 384 dots/line |
|
|
Effective Printing Width |
48mm |
|
|
Character |
Character Set |
ASCII, GB18030(Chinese), BIG5, Code |
|
Print Font |
24×24,8×16,9*17 |
|
|
Paper Spec |
Paper Type |
Thermal paper |
|
Paper Width |
57.5± 0.5mm |
|
|
Paper Thickness |
0.06~0.08mm |
|
|
Paper Roll Diameter |
Max: 50.0mm |
|
|
Reliability |
MCBF |
50KM |
|
Barcode |
1D: UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODEBAR, CODE93, CODE128 2D: PDF417, QR CODE, DATAMATRIX |
|
|
Emulation |
ESC/POS |
|
|
Interface |
RS-232/Parallel/TTL/USB |
|
|
Power Supply (Adapter) |
DC:5-8.5V±10％, 2A |
|
|
Auto cutter |
NO |
|
|
Installation Size |
80x80x57mm |
|
|
physical dimension |
84 × 84 × 59mm (W×H×D) |
|
|
Color |
White/Black |
|
|
Weight |
112g (not paper roll) |
|
|
Operating Temp/Humidity |
0-50°C/20%-80% |
|
|
Storage Temp/Humidity |
-20-70°C / 5%-95% |
|
80mm thermal printer (PM-106PT)
|
Model No. |
EP80 |
|
|
|
Printing Method |
Thermal |
|
Printing Speed |
170mm/s |
|
|
Resolution |
8 dots/mm, 576 dots/line |
|
|
Effective Printing Width |
72mm |
|
|
Character |
Character Set |
ASCII, GB18030(Chinese), BIG5, Code |
|
Print Font |
24×24,8×16 |
|
|
Paper Spec |
Paper Type |
Thermal paper |
|
Paper Width |
79.5± 0.5mm |
|
|
Paper Thickness |
0.06~0.08mm |
|
|
Paper Roll Diameter |
Max: 50.0mm |
|
|
Reliability |
MCBF(MCBF) |
100KM |
|
Barcode |
1D: UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF25, CODEBAR, CODE93, CODE128 2D: PDF417, QR CODE, DATAMATRIX |
|
|
Emulation |
ESC/POS |
|
|
Interface |
RS-232 /TTL/USB |
|
|
Power Supply (Adapter) |
DC24V±10％， 2A |
|
|
Auto cutter |
YES |
|
|
physical dimension |
132x125.5x87mm (W×H×D) |
|
|
Weight |
400g (not paper roll) |
|
|
Color |
White/Black |
|
|
Operating Temp/Humidity |
0-50°C/20%-80% |
|
|
Storage Temp/Humidity |
-20-70°C / 5%-95% |
|

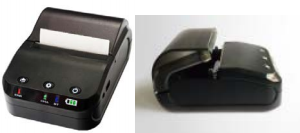

Bluetooth printer(PM-201PTB)
58mm thermal printer
1、Light weight for taking conveniently
2、Multi-interface
3、Vehicle charger support
4、Super battery capability
5、Continuing printing when battery in charging
|
Model No. |
PM-201PTB |
|
Printing Method |
Thermal Line |
|
Resolution |
8 dots/mm (203dpi), 384dots/line |
|
Effective Printing Width |
48mm |
|
Paper width |
58mm |
|
Printing Speed |
80mm/s(Max) |
|
TPH |
50km |
|
Barcode |
1D: UPC-A，UPC-E，EAN-13，EAN-8，CODE39，ITF25， CODEBAR，CODE93，CODE128, 2D:PDF417,QR CODE, DATA matrix |
|
Interface |
USB/RS232/USB+ Bluetooth/RS232+Bluetooth |
|
Command Set |
ESC/POS |
|
Other Functions |
Power alarm, Black-mark detection, Auto-sleep, |
|
Paper Type |
Thermal Paper |
|
Paper Roll Diameter |
Max 40mm, 13mm(min.) |
|
Paper Thickness |
0.06mm~0.08mm |
|
Battery |
7.4V/1600mAh rechargeable Li-ion battery |
|
Battery Duration |
Printing density (25%) ,at least 120 meters, the standby time is over 100 hours. |
|
Charger |
9V/1A |
|
Paper Cutting Method |
Manual |
|
Outline Dimension |
108mm (L) X 76mm(W) X46.6mm (H) |
|
Weight |
250g (without battery) |
|
Operating Temp/Humidity |
-10-50°C/20%-85% |
|
Storage Temp/Humidity |
-10-60°C/10%-95% |
80mm thermal printer (PM-202PTB)
|
Model No. |
PM-202PTB |
|
Printing Method |
Thermal Line |
|
Resolution |
8 dots/mm, 576 dots/line |
|
Effective Width |
72mm |
|
Printing Speed |
80mm/s |
|
Character Set |
ASCII,GB18030(Chinese),BIG5,Codepage |
|
Print Font |
ANK:12x24,Chinese:24x24 |
|
Barcodes |
1D:UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25, CODABAR,CODE93,CODE128 2D:PDF417,QR code,DATA Matrix |
|
Paper End Sensor |
Yes |
|
Black Mark Location |
Yes |
|
Auto Sleeping |
Yes |
|
Interface |
USB+Bluetooth,RS232+ Bluetooth, RS232,USB |
|
Battery |
7.4V/1600mAh rechargeable Li-ion battery |
|
Charger |
DC9V/1A |
|
TPH |
50km |
|
Paper Type |
Thermal paper |
|
Paper Width |
79.5± 0.5mm |
|
Paper Thickness |
0.06 to 0.08mm |
|
Paper Roll Diameter |
Max 40mm |
|
Paper Supply Method |
Drop-in Easy loading |
|
Operating Temp/Humidit y |
-10-50°C/20%-85% |
|
Storage Temp/Humidity |
-10-60°C/10%-95% |
|
Dimension (L x W x H) |
107x98x46(mm) |
|
Weight |
234g(No paper rolls) |
